SwingFrame Mfg.

Poster SwingFrame with Matboard

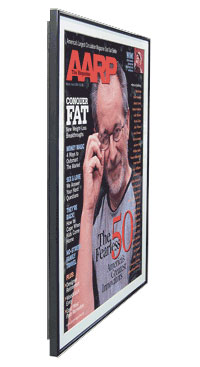

Classic Poster SwingFrame

This traditional style display case with its decorative beveled Matboard presents a classic look that can fit comfortably into any interior environment. The patented swing-open feature allows for the rapid change of posters, graphics, signs, etc...

Classic Poster SwingFrame




Classic Poster SwingFrame





Classic Poster SwingFrame


Classic Poster SwingFrame


Classic Poster SwingFrame
Classic Poster SwingFrame Specifications

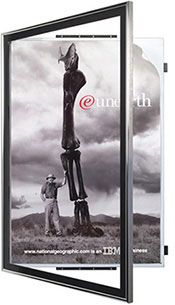

Patented swing-open system features concealed hinges and Gravity Lock
Narrow profile offers 1 3/8" overall off the wall depth
Beveled Matboard
Arctic White Silver
Raven Black Old Gold
Repositionable Adhesive Tapes to hold posters in position
Front display case opens 90 degrees for easy access (opens right to left)
Accepts printed materials up to 1/16" thick

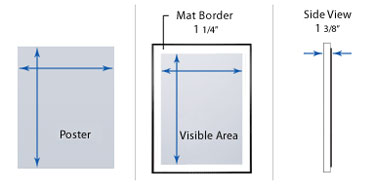

Visible Area: Matboard overlaps poster 1/4" all around
Backing Board: 1/8" White Coroplast
Window: .093 Clear Acrylic included which provides a clear viewing window
Installs easily (Mounting Hardware included)
Classic Poster SwingFrame Displays are for INDOOR USE ONLY
Classic Poster SwingFrame

6 Popular Anodized Finishes
Click on each finish to view an enlarged view

Satin Black - Classic Poster SwingFrame Frame Finish Satin Silver - Classic Poster SwingFrame Frame Finish Satin Gold - Classic Poster SwingFrame Frame Finish Polished Black - Classic Poster SwingFrame Frame Finish Polished Silver - Classic Poster SwingFrame Frame Finish Polished Gold - Classic Poster SwingFrame Frame Finish
Satin
Black
Satin
Silver
Satin
Gold
Polished
Black
Polished
Silver
Polished
Gold

Custom Options

Non-Glare Acrylic
Break Resistant Acrylic
Side Plunge Lock and Key
Matboards: Choose from other popular colors
Poster display case Orientation: Portrait or Landscape
Poster SwingFrames can be modified to accept Mounted Posters up to 1/4" Thick
Custom sizes: Up to 40" x 60"


Design Center
Our Design Center provides additional customization and options to help you design the right visual displays for your projects...
Click here

Size Chart

Model Insert Size Viewable Area Overall Size
SFC-8511 8 1/2" x 11" 8" x 10 1/2" 11 1/2" x 14"
SFC-8514 8 1/2" x 14" 8" x 13 1/2" 11 1/2" x 17"
SFC-1020 10" x 20" 9 1/2" x 19 1/2" 13" x 23"
SFC-1114 11" x 14" 10 1/2" x 13 1/2" 14" x 17"
SFC-1117 11" x 17" 10 1/2" x 16 1/2" 14" x 19"
SFC-1218 12" x 18" 11 1/2" x 17 1/2" 15" x 21"
SFC-1220 12" x 20" 10 1/2" x 13 1/2" 15" x 23"
SFC-1224 12" x 24" 11 1/2" x 23 1/2" 15" x 27"
SFC-1236 12" x 36" 11 1/2" x 35 1/2" 15" x 39"
SFC-1319 13" x 19" 12 1/2" x 18 1/2" 16" x 22"
SFC-1422 14" x 22" 13 1/2" x 21 1/2" 17" x 25"
SFC-1616 16" x 16" 15 1/2" x 15 1/2" 19" x 19"
SFC-1620 16" x 20" 15 1/2" x 19 1/2" 19" x 23"
SFC-1624 16" x 24" 15 1/2" x 23 1/2" 19" x 27"
SFC-1722 17" x 22" 16 1/2" x 21 1/2" 20" x 25"
SFC-1818 18" x 18" 17 1/2" x 17 1/2" 21" x 21"
SFC-1824 18" x 24" 17 1/2" x 23 1/2" 21" x 27"
SFC-2020 20" x 20" 10 1/2" x 13 1/2" 23" x 23"
SFC-2024 20" x 24" 19 1/2" x 23 1/2" 23" x 27"
SFC-2028 20" x 28" 19 1/2" x 27 1/2" 23" x 31"
SFC-2030 20" x 30" 19 1/2" x 29 1/2" 23" x 33"
SFC-2228 22" x 28" 21 1/2" x 27 1/2" 25" x 31"
SFC-2234 22" x 34" 21 1/2" x 33 1/2" 25" x 37"
SFC-2424 24" x 24" 23 1/2" x 23 1/2" 27" x 27"
SFC-2430 24" x 30" 23 1/2" x 29 1/2" 27" x 33"
SFC-2436 24" x 36" 23 1/2" x 35 1/2" 27" x 39"
SFC-2448 24" x 48" 23 1/2" x 47 1/2" 27" x 51"
SFC-2740 27" x 40" 26 1/2" x 39 1/2" 30" x 43"
SFC-2741 27" x 41" 26 1/2" x 40 1/2" 30" x 44"
SFC-3040 30" x 40" 29 1/2" x 39 1/2" 33" x 43"
SFC-3636 36" x 36" 35 1/2" x 35 1/2" 39" x 39"
SFC-3648 36" x 48" 35 1/2" x 47 1/2" 39" x 51"
SFC-3757 37" x 57" 36 1/2" x 56 1/2" 40" x 60"
