SwingFrame Decor Edge-Lit LED Lightbox - Metal - Flat Top

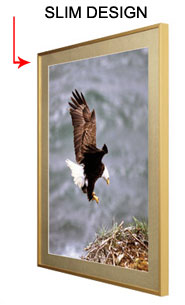

LED Light boxes from SwingFrame Mfg offers the latest in edgelit LED display technology. Designed with
a contemporary flat face metal frame profile #117, the Décor LED edgelit light box display frame has a slim
2” off the wall depth and swings open for quick poster and graphic changes. This long-lasting, energy
efficient Décor LED wall lightbox case also includes a beveled matboard border that provides an elegant
custom picture frame style.

LED Lightbox Display: Slim LED Lightboxes Built by SwingFrame Mfg. LED Light Boxes | Swing-Open LED Wall Lightbox Case





LED Lightbox Display: Slim LED Lightboxes Built by SwingFrame Mfg. LED Light Boxes | Swing-Open LED Wall Lightbox Case


LED Lightbox Display: Slim LED Lightboxes Built by SwingFrame Mfg. LED Light Boxes | Swing-Open LED Wall Lightbox Case


LED Lightbox Display: Slim LED Lightboxes Built by SwingFrame Mfg. LED Light Boxes | Swing-Open LED Wall Lightbox Case
SwingFrame Decor Edge-Lit LED Lightbox - Metal - Flat Top Specifications

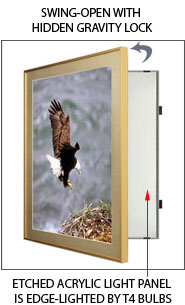

Patented swing-open system features concealed hinges and Gravity Lock
UL listings for all components
Acrylic panel with grid allows for even light distribution
Low maintenance Super Bright White LED's
Electrical: 90 - 120V / 50 - 60Hz
Lamp Illuminance: 1,500 - 3,000 lux
White LED's (12V AC Adapter)
Lamp life - 80,000 hours
Black Electric Cord: 8 ft., 2 prong
Magnetic clamps on frame door allow for easy poster changes
Beveled Matboard - Complimentary to Frame Finish
Break Resistant Acrylic: High impact acrylic, perfect for high traffic or public environments

Frame Profile: 5/8" Wide
Overall Depth: 2"
Installs Easily - Metal Z-Bar (Cleats) with mounting holes provided
These Edgelit LED displays are for INDOOR USE ONLY
LED Lightbox Display: Slim LED Lightboxes Built by SwingFrame Mfg. LED Light Boxes | Swing-Open LED Wall Lightbox Case

Custom Options
Side Plunge Lock and Key
Custom sizes: Up to 40" x 60"

8 LED Lightbox Frame Finishes
Click on each finish to view an enlarged view

frosted-bronze-SwingFrame-Decor-Edge-Lit-LED-Lightbox-Metal-flat-Top glacier-white-SwingFrame-Decor-Edge-Lit-LED-Lightbox-Metal-flat-Top polished-gold-SwingFrame-Decor-Edge-Lit-LED-Lightbox-Metal-flat-Top polished-black-SwingFrame-Decor-Edge-Lit-LED-Lightbox-Metal-flat-Top polished-silver-SwingFrame-Decor-Edge-Lit-LED-Lightbox-Metal-flat-Top satin-black-SwingFrame-Decor-Edge-Lit-LED-Lightbox-Metal-flat-Top satin-gold-SwingFrame-Decor-Edge-Lit-LED-Lightbox-Metal-flat-Top satin-silver-SwingFrame-Decor-Edge-Lit-LED-Lightbox-Metal-flat-Top
Frosted
Bronze
Glacier
White
Polished
Gold
Polished
Black
Polished
Silver
Satin
Black
Satin
Gold
Satin
Silver

Design Center
Our Design Center provides additional customization and options to help you design the right visual displays for your projects...
Click here

Size Chart

Model Insert Size Viewable Area Overall Size
SFLB117LED-1824 18" x 24" 16" x 22" 20 3/8" x 26 3/8"
SFLB117LED-2228 22" x 28" 20" x 26" 24 3/8" x 30 3/8"
SFLB117LED-2436 24" x 36" 22" x 34" 26 3/8" x 38 3/8"
SFLB117LED-3040 30" x 40" 28" x 38" 32 3/8" x 42 3/8"
SFLB117LED-3648 36" x 48" 34" x 46" 38 3/8" x 50 3/8"
