SwingSnap Wide-Edge T4 Edge-lit Lightbox
Snap Frame "SwingSnap" Wide-Edge T4 Edge-Lit Lightbox

SwingFrame’s “SwingSnap” Wide-Edge, Edgelit T-4 Lightbox creates more impact. The 2 ½” wide metal
frame profile truly stands out compared to standard snap frame light box display frames. The Wide
Edge lightbox has a wall depth of only 2”. This slim design gives the Wide-Edge wall lightbox display a contemporary, attractive industrial style to enhance an array of interior décors. Long-lasting, energy-efficient
T-4 bulbs on the edges of a thin etched light panel provides a bright even light for illuminating posters,
signs and Duratrans graphics.

SwingSnap Wide-Edge T4 Edge-lit Lightbox





SwingSnap Wide-Edge T4 Edge-lit Lightbox


SwingSnap Wide-Edge T4 Edge-lit Lightbox


SwingSnap Wide-Edge T4 Edge-lit Lightbox
Snap Frame Wide-Edge T4 Edge-Lit Lightbox Specifications
Quick-Changing Front Loading frame allows for effortless graphic and bulb replacement
UL listings for all components

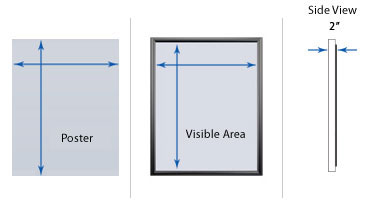

Visible Area: Moulding overlaps poster 1" all around
Overall Depth: 2"
Acrylic panel with grid allows for even light distribution
Low maintenance replaceable T-4 linkable fluorescent bulbs
Window: .020 clear overlay Insert which provides a clear viewing window
Electrical: 120V / 50 - 60Hz
Built-in silent electronic ballast - flicker free
Fluorescent Lamps - Cool White T-4 (6400K)
Lamp life - 16,000 hours
White Electric Cord: 6 ft., 2 prong
Cord Exit: Center Back (unless otherwise specified)
No Tools! All four sides snap-open easily by hand
Installs Easily, Mounting hardware included
Thin SwingSnap Lightbox

3 Anodized Poster Frame Finishes
Click on each finish to view an enlarged view

painted-black-thing-swingsnap-lightbox painted-white-thing-swingsnap-lightbox anodized-silver-thing-swingsnap-lightbox
Satin Black Satin Silver Satin Gold


Design Center

Our Design Center provides additional customization and options to help you design the right visual displays for your projects...
Click here

Size Chart

Model Insert Size Viewable Area Overall Size
SSWELBT4-1117 11" x 17" 9" x 15" 14 5/8" x 20 5/8"
SSWELBT4-1824 18" x 24" 16" x 22" 21 5/8" x 27 5/8"
SSWELBT4-2228 22" x 28" 20" x 26" 25 5/8" x 31 5/8"
SSWELBT4-2424 24" x 24" 22" x 22" 27 5/8" x 27 5/8"
SSWELBT4-2430 24" x 30" 22" x 28" 27 5/8" x 33 5/8"
SSWELBT4-2436 24" x 36" 22" x 34" 27 5/8" x 39 5/8"
SSWELBT4-2448 24" x 48" 22" x 46" 27 5/8" x 51 5/8"
SSWELBT4-3040 30" x 40" 28" x 38" 33 5/8" x 43 5/8"
SSWELBT4-3648 36" x 48" 34" x 46" 39 5/8" x 51 5/8"
SSWELBT4-4060 40" x 60" 38" x 58" 43 5/8" x 63 5/8"
