Designer Metal Bulletin Board SwingFrame with Header
Designer Metal Bulletin Board SwingFrame with Header

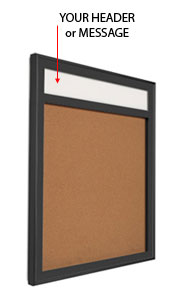

Our Designer Metal Bulletin Boards for interior use now come with a changeable header to clearly
identify your organization's message or name for all to see. Helvetica-style lettering is done in uppercase
and is sized and centered depending on the requested message or name.

Designer Metal Bulletin Board SwingFrame with Header





Designer Metal Bulletin Board SwingFrame with Header


Designer Metal Bulletin Board SwingFrame with Header


Designer Metal Bulletin Board SwingFrame with Header
Designer Metal Bulletin Board SwingFrame with Header Specifications

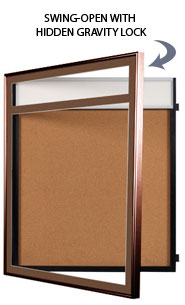

Patented swing-open system features concealed hinges and Gravity Lock
1/4" natural cork mounted on 1/4" hardboard
Interior Useable Depth: 3/4"
Break Resistant Acrylic: High impact acrylic, perfect for high traffic or public environments
Frame Profile: 5/8" Wide
Overall Depth: 2 5/8"
Helvetica vinyl lettering is provided on a 6" removable header
- White lettering on a black background
- Black lettering on a white background
Headers can be changed in seconds
Beveled Matboard - Complimentary to Frame Finish
Installs Easily: Mounting hardware included
These displays are for INDOOR USE ONLY
Designer Metal Bulletin Board SwingFrame with Header

5 Anodized Frame Finishes
Click on each finish to view an enlarged view

Satin Black-Metal Bulletin Board SwingFrame with Header Frame Finish Satin Silver-Metal Bulletin Board SwingFrame with Header Frame Finish Polished Gold-Metal Bulletin Board SwingFrame with Header Frame Finish Satin Silver-Metal Bulletin Board SwingFrame with Header Frame Finish Polished Gold-Metal Bulletin Board SwingFrame with Header Frame Finish
Satin
Black
Satin
Silver
Light
Gold
Dark
Bronze
Glacier
White

6 Optional Fabric Colors
Click on each finish to view an enlarged view

Burgundy-Optional Fabric Color Black-Optional Fabric Color Green-Optional Fabric Color Wedgewood-Optional Fabric Color Wheat-Optional Fabric Color Silver Papier-Optional Fabric Color
Burgundy Black Green Wedgewood Wheat Silver Papier

Custom Options
Frame Orientation: Portrait or Landscape
Backing Board: Fabric over Corkboard
Side Plunge Lock and Key
Custom sizes: Up to 40" x 60"

Design Center
Our Design Center provides additional customization and options to help you design the right visual displays for your projects...
Click here

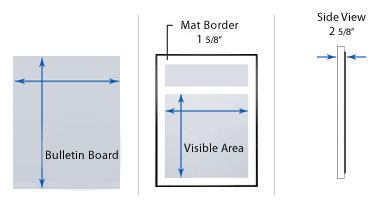

Size Chart

Model Interior Size Viewable Area Overall Size
(Portrait)
Overall Size
(Landscape)
SFMBH-1824 18" x 24" 17" x 23" 21 5/8" x 34 3/8" 27 5/8" x 28 3/8"
SFMBH-2424 24" x 24" 23" x 23" 27 5/8" x 34 3/8" 27 5/8" x 34 3/8"
SFMBH-2436 24" x 36" 23" x 35" 27 5/8" x 46 3/8" 39 5/8" x 34 3/8"
SFMBH-3030 30" x 30" 29" x 29" 33 5/8" x 40 3/8" 33 5/8" x 40 3/8"
SFMBH-3036 30" x 36" 29" x 35" 33 5/8" x 46 3/8" 39 5/8" x 40 3/8"
SFMBH-3244 32" x 44" 31" x 43" 35 5/8" x 54 3/8" 47 5/8" x 42 3/8"
SFMBH-3636 36" x 36" 35" x 35" 39 5/8" x 46 3/8" 39 5/8" x 46 3/8"
SFMBH-3648 36" x 48" 35" x 47" 39 5/8" x 58 3/8" 51 5/8" x 46 3/8"
