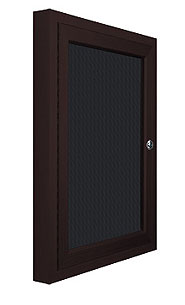

Outdoor Letterboard Swing Cases
Outdoor Letterboard Swing Cases

Built for the outdoors; this attractive lockable, single door metal display case can withstand the elements
while protecting and delivering your directory or message. Changeable white plastic letters are placed
onto Interior vinyl grooved panel and can be used to display a variety of messages including; schedules,
products & prices, lists and events.

Outdoor Letterboard Swing Cases





Outdoor Letterboard Swing Cases


Outdoor Letterboard Swing Cases


Outdoor Letterboard Swing Cases
Outdoor Letterboard Swing Case Specifications
Lockable doors are mounted on full length piano hinges (two keys included)
Profile offers 2" overall depth
Weather resistant aluminum backing with silicone sealant
Black vinyl letterboard interior is standard
3/4" Helvetica letter and number set included
5/8" Interior Useable Depth
Weep holes provided on bottom to reduce condensation build-up

Break Resistant Acrylic: High impact acrylic, perfect for high traffic or public environments
Installs easily
Outdoor Letterboard Swing Cases

4 Outdoor Treated Frame Finishes
Click on each finish to view an enlarged view

satin-black-outdoor-letterboard-swingcases satin-silver-outdoor-letterboard-swingcases satin-gold-outdoor-letterboard-swingcases powdercoat-bronze-outdoor-letterboard-swingcases
Powdercoat
Black
Satin
Silver
Satin
Gold
Powdercoat
Bronze

Optional Vinyl Covering
Click on each vinyl covering to view an enlarged view

burgundy-outdoor-letterboard-swingcases black-outdoor-letterboard-swingcases barcelona-blue-outdoor-letterboard-swingcases hunter-green-outdoor-letterboard-swingcases grey-outdoor-letterboard-swingcases
Burgundy White Barcelona
Blue
Hunter
Green
Grey

Custom Options

Backing Board: Vinyl over Letterboard
Custom sizes: Up to 48" x 96"


Design Center
Our Design Center provides additional customization and options to help you design the right visual displays for your projects...
Click here

Size Chart

Model Insert Size Viewable Area Overall Size
(Portrait)
Overall Size
(Landscape)
SCL-8511 9 3/4" x 12 3/4" 8 1/2" x 11" 13 3/4" x 16" 16 1/4" x 13 1/2"
SCL-1114 12 1/4" x 15 3/4" 11" x 14" 16 1/4" x 19" 19 1/4" x 16"
SCL-1117 12 1/4" x 18 3/4" 11" x 17" 16 1/4" x 22" 22 1/4" x 16"
SCL-1319 14 1/4" x 20 3/4" 12 3/4" x 19"
(Landscape 18 3/4" x 13")
18" x 24" 24" x 18"
SCL-1824 19 1/4" x 24 3/4" 18" x 24" 23 1/4" x 29" 29 1/4" x 23"
SCL-1931 20 1/4" x 32 3/4" 18 3/4" x 31"
(Landscape 30 3/4" x 19")
24" x 36" 36" x 24"
SCL-2228 23 1/4" x 29 3/4" 22" x 28" 27 1/4" x 33" 33 1/4" x 27"
SCL-2436 25 1/4" x 37 3/4" 24" x 36" 29 1/4" x 41" 41 1/4" x 29"
SCL-3040 31 1/4" x 41 3/4" 30" x 40"
35 1/4" x 45" 45 1/4" x 35"
SCL-3131 32 1/4" x 32 3/4" 30 3/4" x 31" 36" x 36" -
SCL-3636 37 1/4" x 37 3/4" 35 3/4" x 36" 42" x 42" -
SCL-3648 37 1/4" x 49 3/4" 35 3/4" x 48"
(Landscape 47 3/4" x 36")
42" x 54" 54" x 42"
