SwingFrame Mfg.

Designer Wood SwingFrame Lightbox
Designer Wood SwingFrame Lightbox

When wood is required for your interior design project, take a good look at our wall mounted SwingFrame
Wood Lightboxes for your visual display needs. These back-lit displays will brighten your poster / graphics
and enhance your decor with its three step profile offered in nine natural wood stained finishes.

Designer Wood SwingFrame Lightbox





Designer Wood SwingFrame Lightbox


Designer Wood SwingFrame Lightbox


Designer Wood SwingFrame Lightbox
Designer Wood SwingFrame Lightbox Specifications
Patented swing-open system features concealed hinges and Gravity Lock

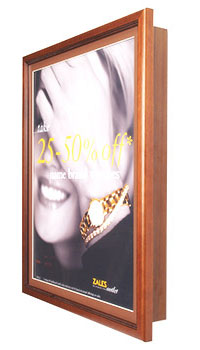

Narrow profile offers 5 5/8" overall off the wall depth
Long lasting linkable T4 UL approved slim light-bulbs
Beveled Matboard - Complimentary to Frame Finish

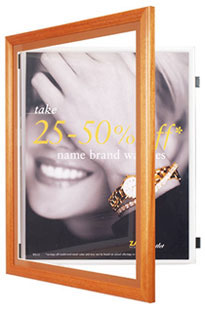

Front frame opens 90 degrees for easy access (opens right to left)
Removable white diffuser panel spreads light evenly

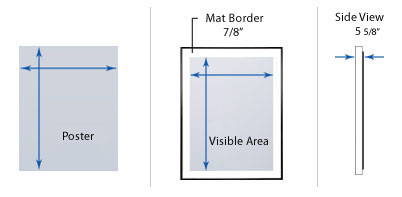

Visible Area: Matboard overlaps poster 1/4" all around
Window: .093 Clear Acrylic included which provides a clear viewing window
Electrical: 120V / 50 - 60Hz
Built-in silent electronic ballast - flicker free
Fluorescent Lamps - Cool White T-4 (6400K)
Lamp life - 16,000 hours
White Electric Cord: 6 ft., 2 prong
Cord Exit: Center Back (unless otherwise specified)
Installs easily (Mounting Hardware included)
Designer Wood SwingFrame Lightbox

9 Contemporary Frame Finishes
Click on each finish to view an enlarged view

Cherry-Designer Wood SwingFrame Lightbox Frame Finish Coffee Brown--Designer Wood SwingFrame Lightbox Frame Finish Honey Maple-Designer Wood SwingFrame Lightbox Frame Finish Mahogany-Designer Wood SwingFrame Lightbox Frame Finish Marine Blue-Designer Wood SwingFrame Lightbox Frame Finish
Cherry Coffee
Brown
Honey
Maple
Mahogany Marine
Blue
Opaque Black-Designer Wood SwingFrame Lightbox Frame Finish Spruce Green-Designer Wood SwingFrame Lightbox Frame Finish Walnut-Designer Wood SwingFrame Lightbox Frame Finish White Wash-Designer Wood SwingFrame Lightbox Frame Finish
Opaque
Black
Spruce
Green
Walnut White
Wash


Custom Options

Side Plunge Lock and Key
Custom sizes: Up to 40" x 60"


Design Center
Our Design Center provides additional customization and options to help you design the right visual displays for your projects...
Click here

Size Chart

Model Insert Size Visible Area Overall Size
SFWL-8511 8 1/2" x 11" 8" x 10 1/2" 12 1/2" x 15"
SFWL-1114 11" x 14" 10 1/2" x 13 1/2" 15" x 18"
SFWL-1117 11" x 17" 10 1/2" x 16 1/2" 15" x 21"
SFWL-1422 14" x 22" 13 1/2" x 21 1/2" 18" x 26"
SFWL-1620 16" x 20" 15 1/2" x 19 1/2" 20" x 24"
SFWL-1824 18" x 24" 17 1/2" x 23 1/2" 22" x 28"
SFWL-2024 20" x 24" 19 1/2" x 23 1/2" 24" x 28"
SFWL-2030 20" x 30" 19 1/2" x 29 1/2"
24" x 34"
SFWL-2228 22" x 28" 21 1/2" x 27 1/2" 26" x 32"
SFWL-2430 24" x 30" 23 1/2" x 29 1/2"
28" x 34"
SFWL-2436 24" x 36" 23 1/2" x 35 1/2" 28" x 40"
SFWL-2448 24" x 48" 23 1/2" x 47 1/2"
28" x 52"
SFWL-2741 27" x 41" 26 1/2" x 40 1/2"
31" x 45"
SFWL-3040 30" x 40" 29 1/2" x 39 1/2"
34" x 44"
SFWL-3636 36" x 36" 35 1/2" x 35 1/2"
40" x 40"
SFWL-3648 36" x 48" 35 1/2" x 47 1/2"
40" x 52"
SFWL-3656 36" x 56" 35 1/2" x 55 1/2"
40" x 60"
