SwingFrame Mfg.

Slide In Poster Frames

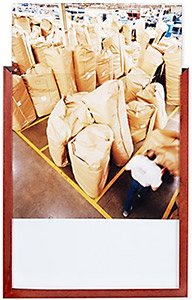

Wood Top / Side Loader Poster Frames

When wood is important and you are faced with tight budgets, this quick change poster sign holder is an easy choice. Simply remove the top or side frame rail and slide in your poster. Wood Top Load Poster Frames will add the appealing warmth of wood to any retail, corporate, institutional, or exhibit interior décor.

Wood Slide In Poster Frames

wood top | side loader poster frames





wood top | side loader poster frames


wood top | side loader poster frames


wood top | side loader poster frames
Wood Top Loading Poster Frame Specifications
Top or Side load slot
Narrow profile offers 7/8" overall off the wall depth
Slot Opening: 1/4"

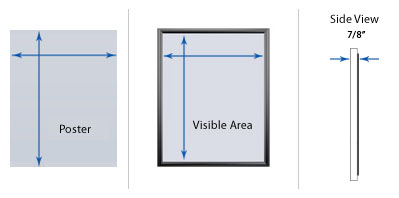

Visible Area: Moulding overlaps poster 3/16" all around
Backing Board: 4mm white Coroplast
Strong lightweight overlay provides a clear viewing window
Installs easily (Mounting Hardware included)
wood top | side loader poster frames

10 Contemporary Wood Poster Frame Finishes
Click on each finish to view an enlarged view

black-wood-361 charcoal-wood-361 cherry-wood-361 dark-green-wood-361 dark-mahogany-wood-361
Black Charcoal Cherry Dark
Green
Dark
Mahogany
honey-pecan-wood-361 natural-clear-wood-361 rich-walnut-wood-361 walnut-stain-wood-361 white-wash-wood-361
Honey
Pecan
Natural
Clear
Rich
Walnut
Walnut
Stain
White
Wash

Custom Options
Non-Glare Overlay- Reduces glare from natural or artificial light that might distract from the poster insert
Break Resistant Overlay- High Impact acrylic, perfect for high traffic or public environments
Backing Board: Additional 4mm white Coroplast
Custom sizes: Up to 48" x 96"

Design Center
Our Design Center provides additional customization and options to help you design the right visual displays for your projects...
Click here

Size Chart

Model Insert Size Viewable Area Overall Size
TLWS-810 8" x 10" 7 1/2" x 9 1/2" 10" x 12"
TLWS-8511 8 1/2" x 11" 8" x 10 1/2" 10 1/2" x 13"
TLWS-8514 8 1/2" x 14" 8" x 13 1/2" 10 1/2" x 16"
TLWS-1020 10" x 20" 9 1/2" x 19 1/2" 12" x 22"
TLWS-1114 11" x 14" 10 1/2" x 13 1/2" 13" x 16"
TLWS-1117 11" x 17" 10 1/2" x 16 1/2" 13" x 19"
TLWS-1218 12" x 18" 11 1/2" x 17 1/2" 14" x 20"
TLWS-1220 12" x 20" 11 1/2" x 19 1/2" 14" x 22"
TLWS-1224 12" x 24" 11 1/2" x 23 1/2" 14" x 26"
TLWS-1236 12" x 36" 11 1/2" x 35 1/2" 14" x 38"
TLWS-1319 13" x 19" 12 1/2" x 18 1/2" 15" x 21"
TLWS-1422 14" x 22" 13 1/2" x 21 1/2" 16" x 24"
TLWS-1616 16" x 16" 15 1/2" x 15 1/2" 18" x 18"
TLWS-1620 16" x 20" 15 1/2" x 19 1/2" 18" x 22"
TLWS-1624 16" x 24" 15 1/2" x 23 1/2" 18" x 26"
TLWS-1722 17" x 22" 16 1/2" x 21 1/2" 19" x 24"
TLWS-1818 18" x 18" 17 1/2" x 17 1/2" 20" x 20"
TLWS-1824 18" x 24" 17 1/2" x 23 1/2" 20" x 26"
TLWS-2020 20" x 20" 19 1/2" x 19 1/2" 22" x 22"
TLWS-2024 20" x 24" 19 1/2" x 23 1/2" 22" x 26"
TLWS-2028 20" x 28" 19 1/2" x 27 1/2" 22" x 30"
TLWS-2030 20" x 30" 19 1/2" x 29 1/2" 22" x 32"
TLWS-2228 22" x 28" 21 1/2" x 27 1/2" 24" x 30"
TLWS-2234 22" x 34" 21 1/2" x 33 1/2" 24" x 36"
TLWS-2424 24" x 24" 23 1/2" x 23 1/2" 26" x 26"
TLWS-2430 24" x 30" 23 1/2" x 29 1/2"
26" x 32"
TLWS-2436 24" x 36" 23 1/2" x 35 1/2" 26" x 38"
TLWS-2740 27" x 40" 26 1/2" x 39 1/2" 29" x 42"
TLWS-2741 27" x 41" 26 1/2" x 40 1/2" 29" x 43"
