| Metal Newspaper SwingFrame Specifications |
 |
  Patented swing-open system features concealed hinges and Gravity Lock
Narrow profile offers 1 5/8" overall off the wall depth
Beveled Matboard - Complimentary to Frame Finish
Interior Useable Depth: 1/4"
1/4" natural cork mounted on 1/4" hardboard

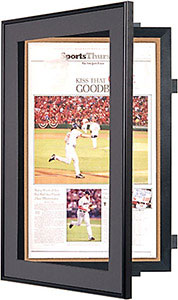

Front frame opens 90 degrees for easy access (opens right to left)
Visible Area: Matboard overlaps cork 1/2" all around
Backing Board: 1/4" Natural Cork mounted on 1/4" Hardboard
Window: .093 Clear Acrylic included which provides a clear viewing window
Installs easily (Mounting Hardware included) |
 |
Custom Options |
|
Side Plunge Lock and Key
Custom sizes: Up to 40" x 60" |
6 Anodized Frame Finishes |
|
Click on each finish to view an enlarged view
 |
 |
 |
 |
 |
 |
Satin
Black |
Satin
Silver |
Satin
Gold |
Polished
Black |
Polished
Silver |
Polished
Gold |
|
Design Center |
|
|
 |
Our Design Center provides additional customization and options to help you design the right visual displays for
your projects...
Click here |
|
Size Chart |
|
| Model |
Newspaper |
Visible Area |
Overall Size |
| SFMN-USA |
USA Today |
11 1/2" x 21 7/8" |
16" x 26 1/2" |
| SFMN-WSJ |
Wall Street Journal |
13 3/4" x 21 7/8" |
18 1/4" x 26 1/2" |
| SFMN-NYT |
New York Times |
12 1/2" x 21 1/8" |
17" x 25 3/4" |
| SFMN-TWP |
The Washington Post |
11 1/2" x 21 1/8" |
16" x 25 3/4" |
| SFMN-LAT |
Los Angeles Times |
11 1/2" x 21 7/8" |
16" x 26 1/2" |
| SFMN-BGL |
Boston Globe |
11 1/2" x 21 1/4" |
16" x 25 7/8" |
| SFMN-CTR |
Chicago Tribune |
11 1/4" x 21 1/8" |
15 3/4" x 25 3/4" |
|
